Machine 15 of 15

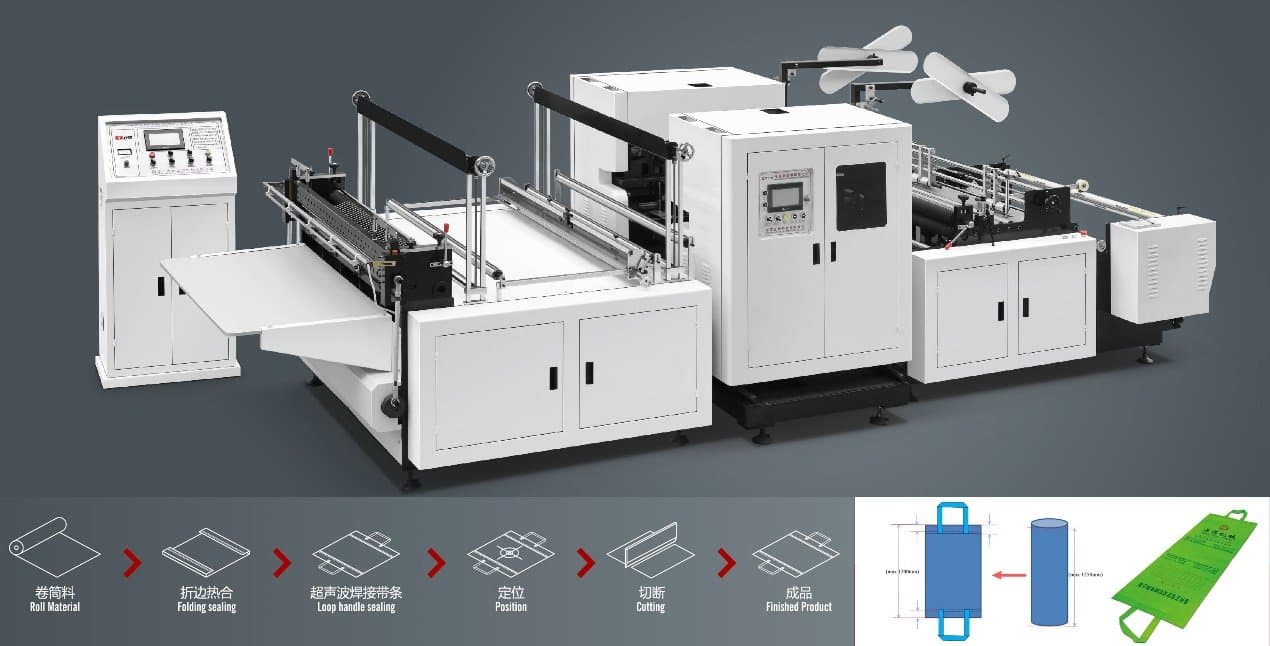

NONWOVEN CROSS CUTTING MACHINE WITH AUTOMATIC HANDLE ATTACHING
Model: ZXQ-C1200
Cuts nonwoven rolls into sheets while bonding loop handles on both sides automatically at up to 70 pcs/min, with edge folding and ultrasonic sealing. Used for hand-made sealed bags, wine bags and gift bags, cutting labour and cost.
Machine Capabilities
Machine Capabilities
✓
Online Handle Attaching
✓
Double Edge Folding
✓
Ultrasonic Welding
✓
High Production Speed
✓
PLC Touch Screen
✓
Labour Saving
Technical Specs
FULL SPECIFICATIONS
| Model | ZXQ-C1200 |
| Unwinding Width | 1200mm |
| Cutting Width | 500-1100mm |
| Cutting Length | 280-800mm |
| Handle Length | 380-600mm |
| Material Thickness | 35-120g/m2 |
| Handle Material Thickness | 60-100g/m2 |
| Production Speed | 30-70 pcs/min |
| Power Supply | 380V/220V |
| Total Power | 13kw |
| Dimensions | 6500x2300x1800mm |
What's Included
Delivery and installation across Egypt
Complete machine setup and calibration
Comprehensive operator training (5–10 days, depending on the machine)
Full spare parts and mold set
Operation manual (Arabic + English)
1-year parts warranty
Post-sale technical support
Ready to Order?
READY TO START
YOUR PRODUCTION?
Contact El Rasheed today for a detailed consultation, live machine demonstration and pricing tailored to your production needs.
