Machine 06 of 09

NONWOVEN FLEXOGRAPHIC PRINTER 4 COLORS

MODEL(ZXH-C41200)

Up to 4-colors flexographic printing.

Request Price →View Specs

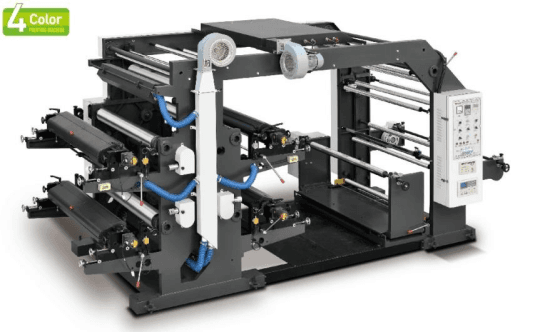

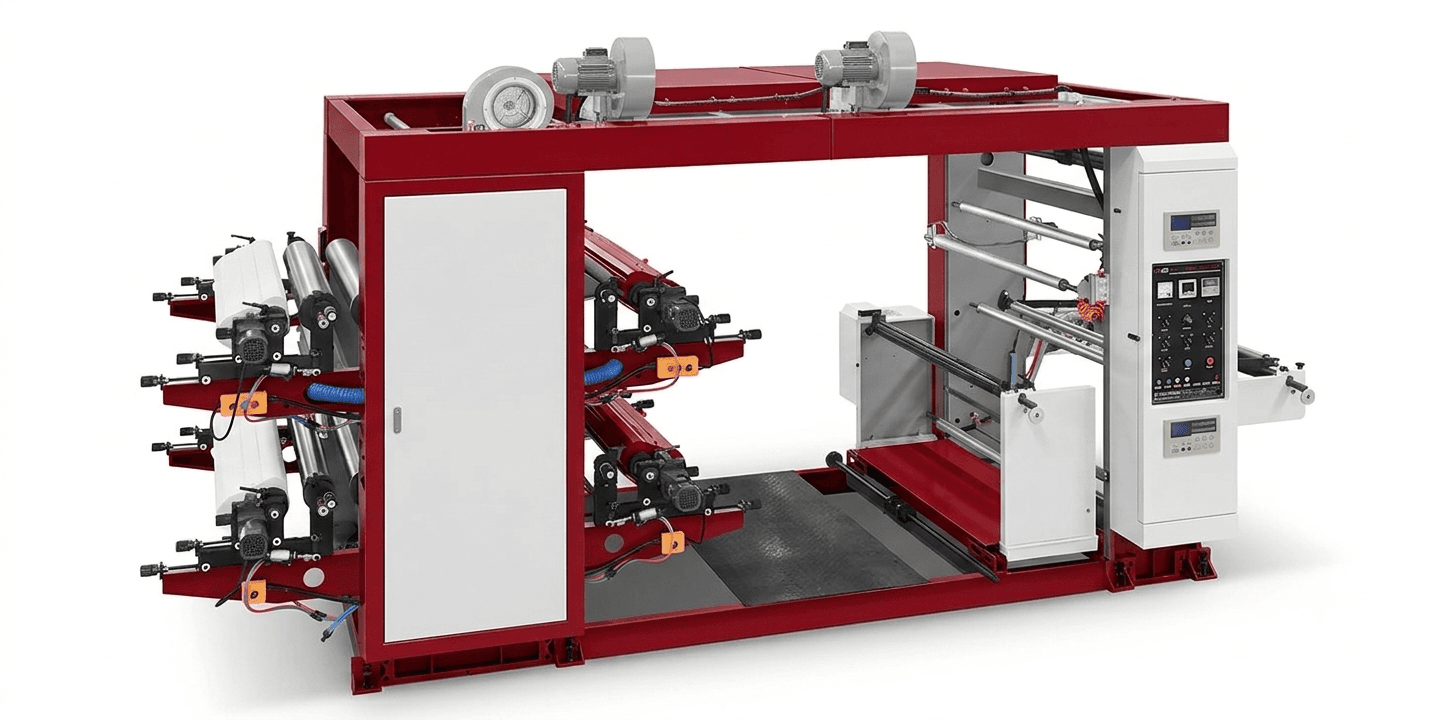

Nonwoven Flexographic Printer 4 colors
80
Pcs / Min
3
Bag Types
1
Operator
✓
Semi / Full Auto

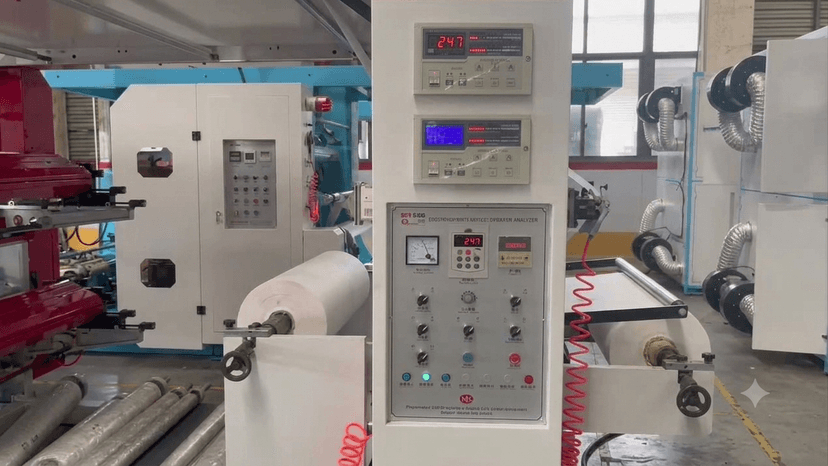

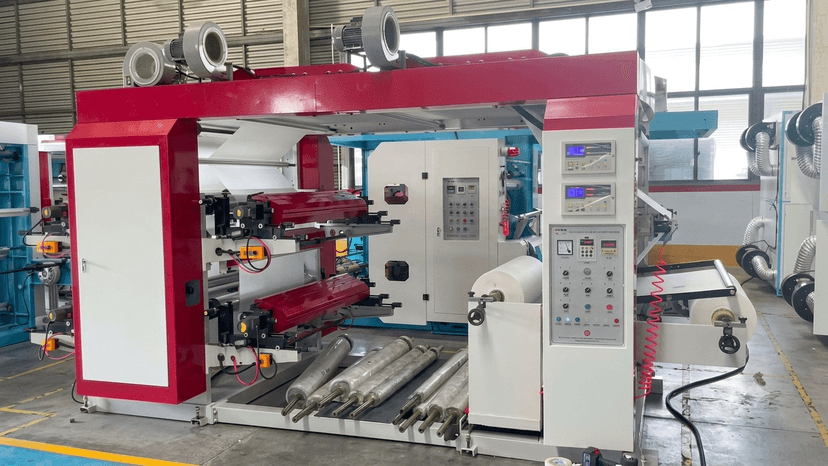

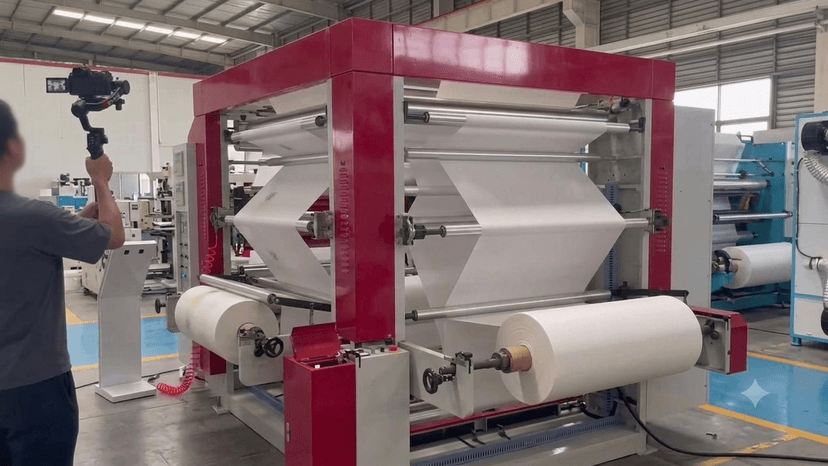

Machine in Action

WATCH IT RUN

- Machine Model: (ZXH-C41200)

Technical Specs

FULL SPECIFICATIONS

ModelZXH-C41200
Fabric Roll Width550-1160mm
Production Speed60-80 pcs/min
Bag Height Range300-700mm
Bag Width Range200-400mm
Side Guest80-220mm
Handle Length
Handle Material Thickness (GSM)
Material Thickness (GSM)30-120g/m2
Bag TypesD-cut, W-cut, Loop
Voltage380V/220V
Total Power15kw
Air Pressure0.6-0.8MPa
Air Flow
Machine Dimensions10500 x 2050 x 1900mm
Machine Weight2900kg
Grade / AutomationSemi / Full Auto

What's Included

Delivery and installation across Egypt
Complete machine setup and calibration
Comprehensive operator training (2–3 days)
Full spare parts and mold set
Operation manual (Arabic + English)
1-year parts warranty
Post-sale technical support
Key Features

MACHINE CAPABILITIES

✓
Servo Controlled
✓
Automatic Counting
✓
High Precision Cutting
✓
PLC Touch Screen
✓
Ultrasonic Welding
✓
Low Power Consumption
✓
Easy Operation
✓
High Production Speed
